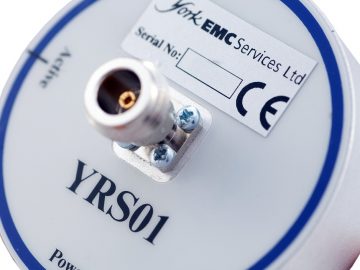

Features

• Selectable noise or comb output; flexibility across a range of applications
• Stable output; repeatable measurements
• 5 kHz to 1 GHz output; applications across a broad frequency spectrum
• Conducted and radiated options; evaluation of both conducted and radiated systems
• Compact and portable; comparisons between sites and environments
• Battery powered; no power or interconnecting cables affecting measurements

Applications

• Investigation, characterisation and comparison of different measurement environments such as OATS, FAR or SAC
• Validation and verfication of radiated and conducted measurement system , such as
  • Open Area Test Sites (OATS)
  • Fully Anechoic Rooms (FAR)
  • Semi-Anechoic Chambers (SAC)
  • Gigahertz Transverse Electromagnetic (GTEM) cells
• Reference source for
  • Daily pre-test checks as required by Quality Managment Systems e.g. ISO17025, DEF STAN 59-411
  • Long-term performance monitoring
  • Cable position investigation
  • Investigation and characterisation of screened room/anechoic room/OATS behaviour
  • Characterisation of filter performance
  • Cable loss measurements
• Measuring amplifier gain and bandwidth
• Spectrum analyser/receiver pre-check
• Inter-laboratory test programs
• Proficiency test programs

Noise Mode

Frequency Range

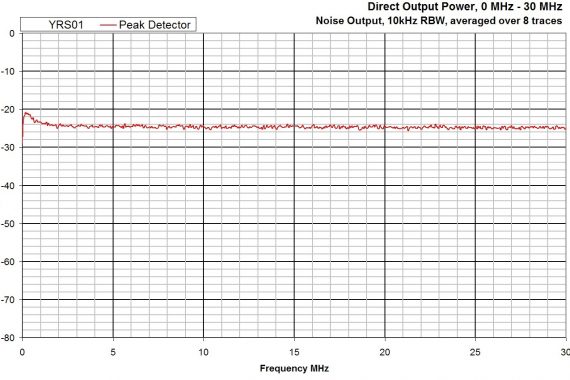

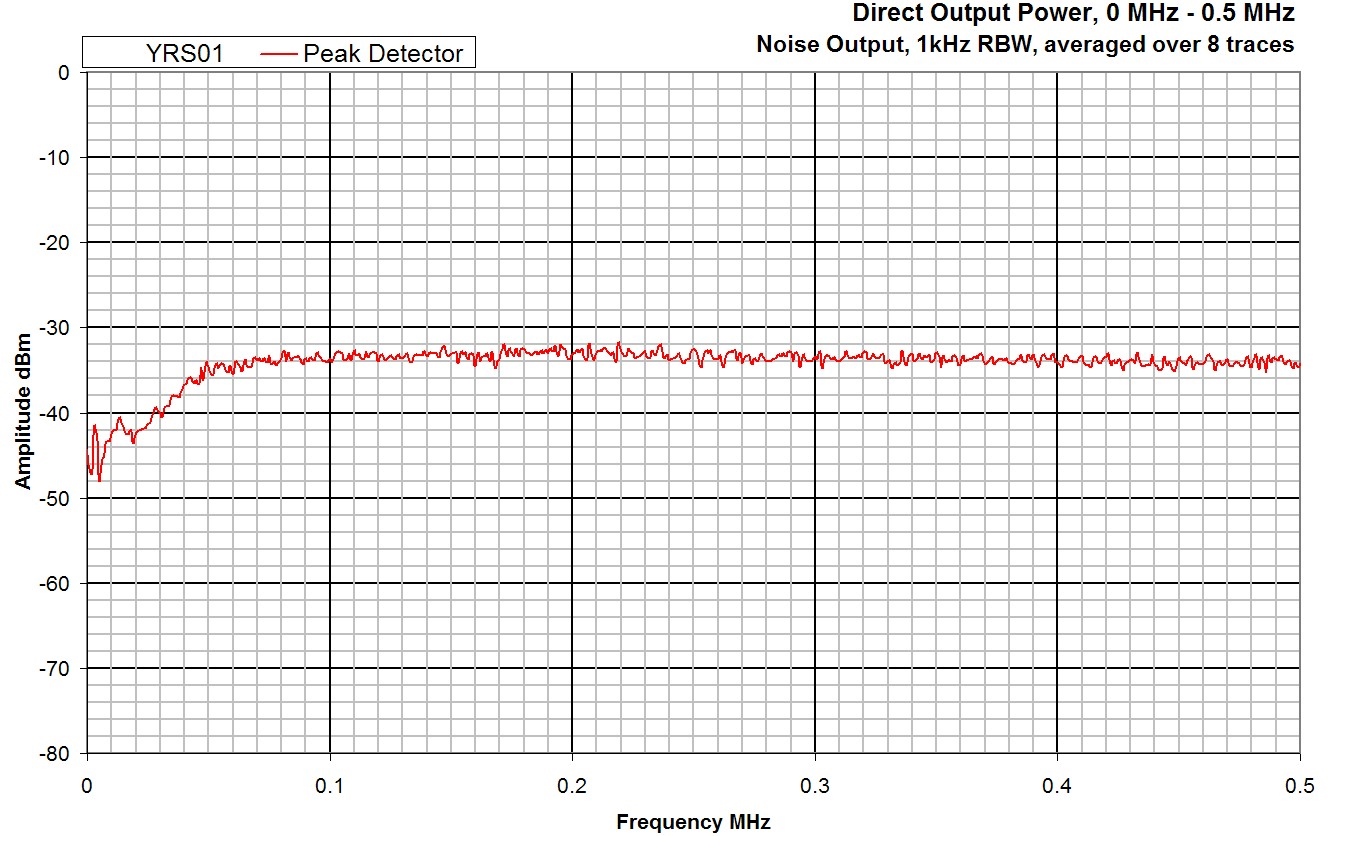

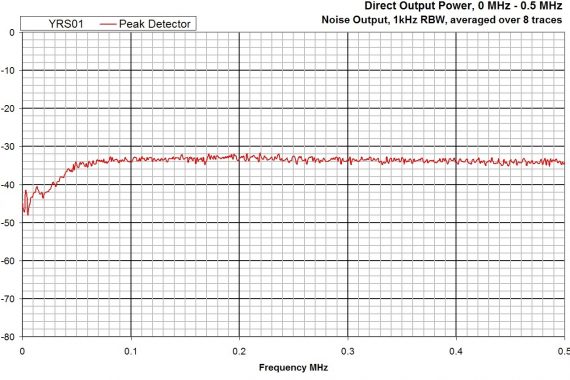

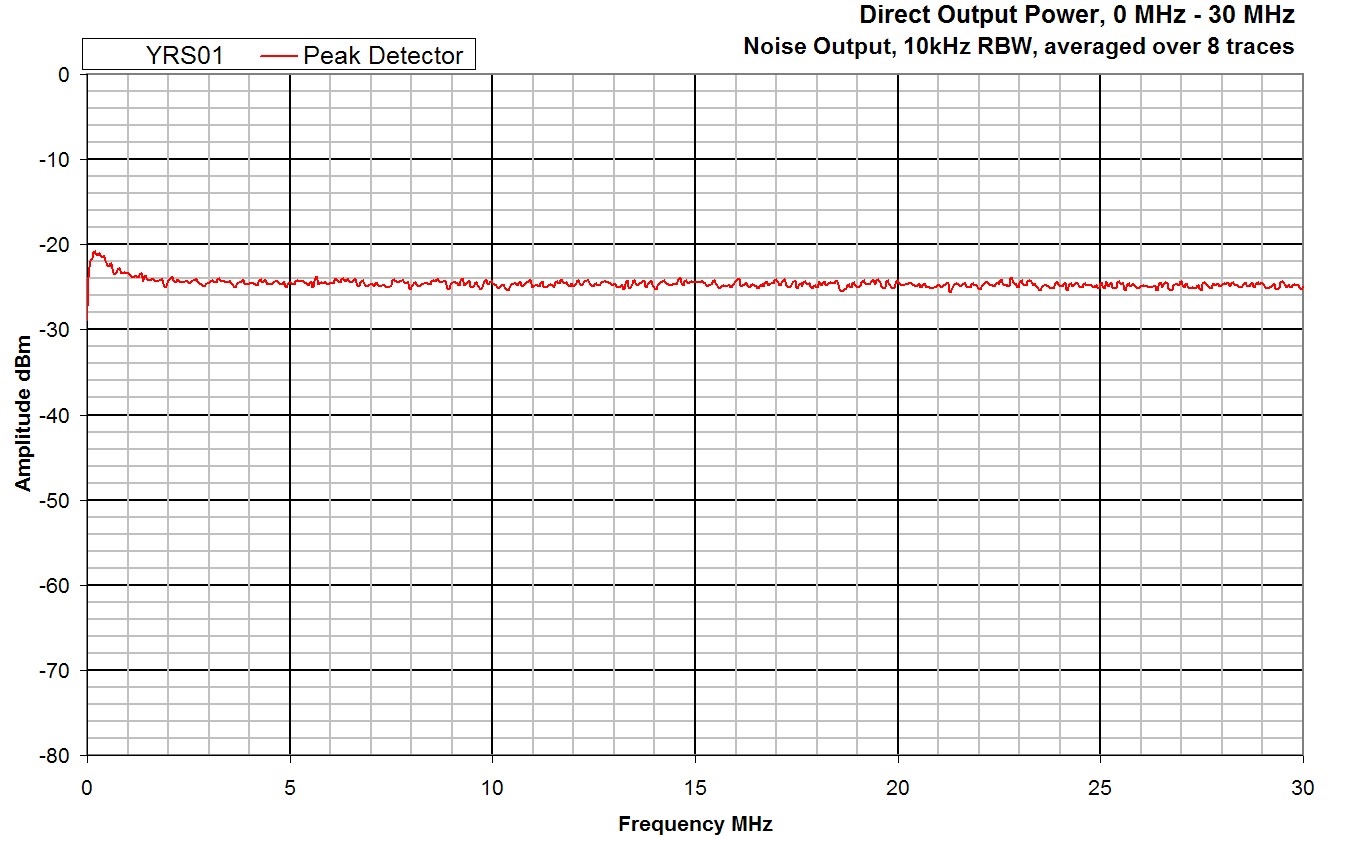

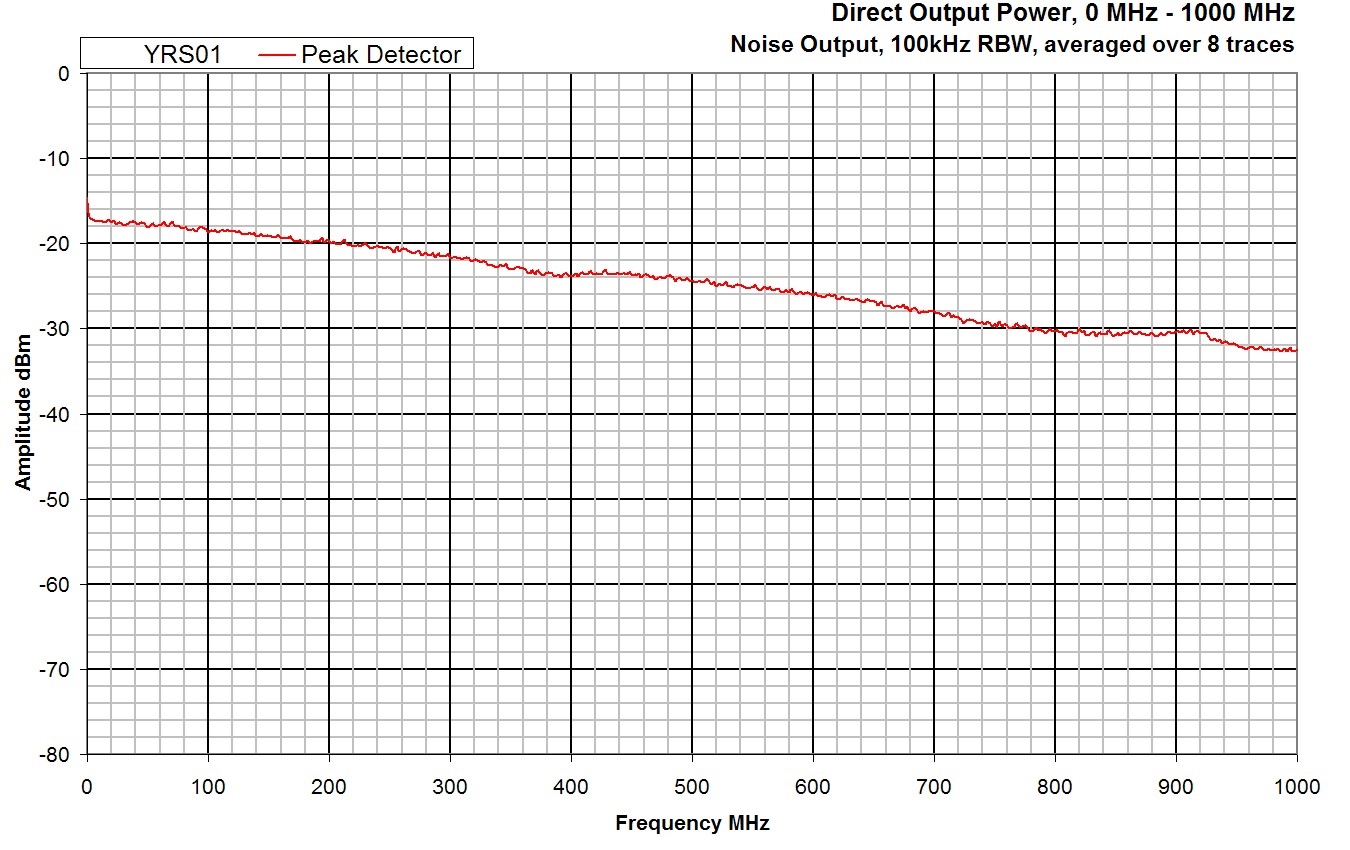

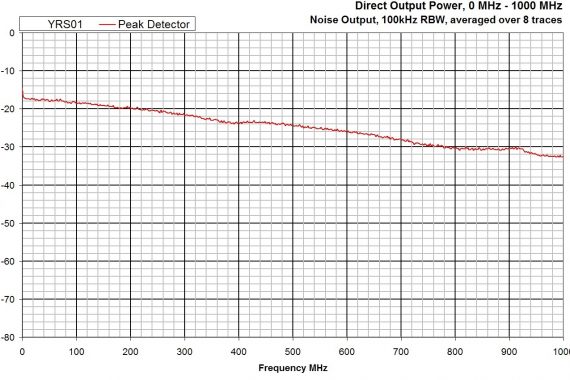

• 9 kHz to 1 GHz direct connection into 50 Ω system

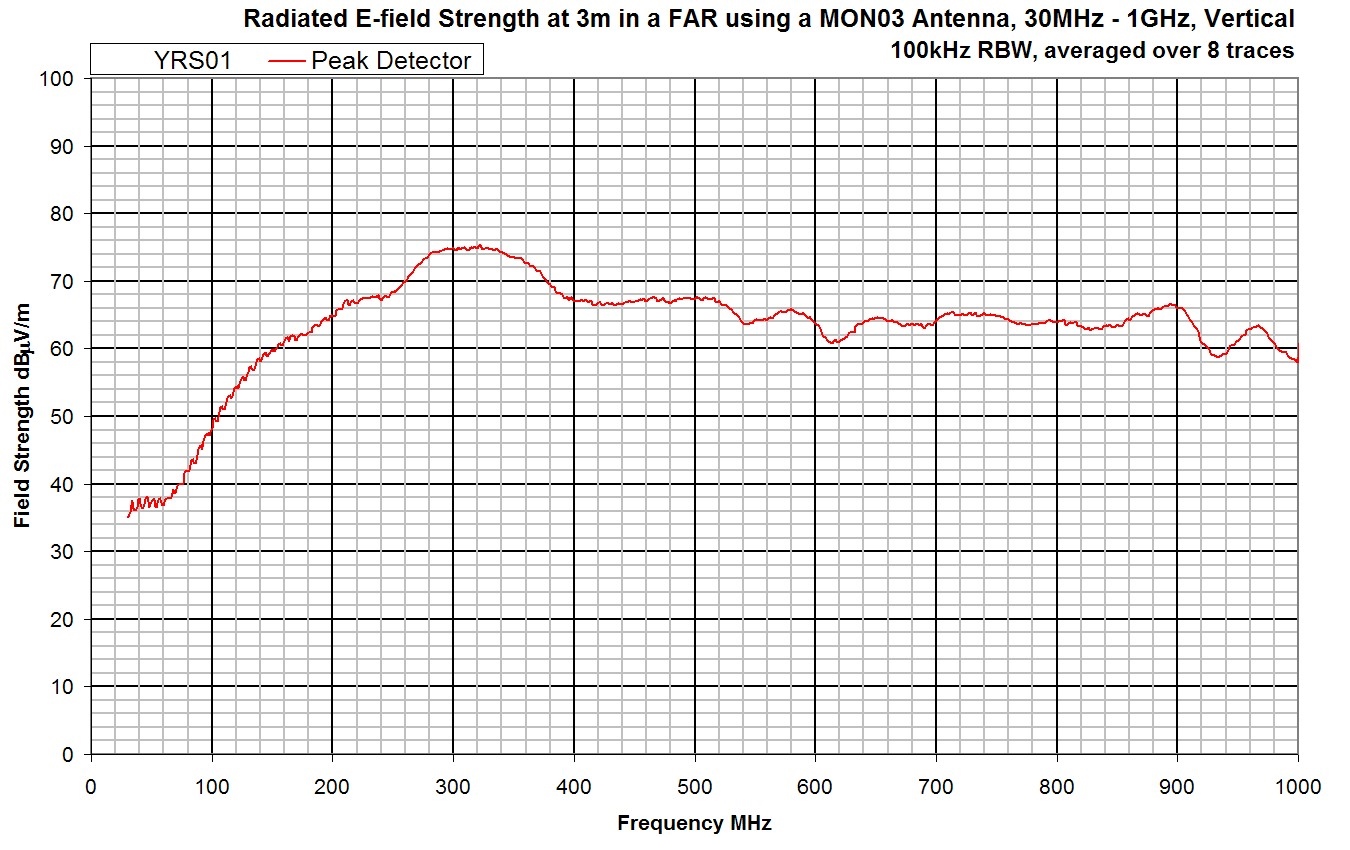

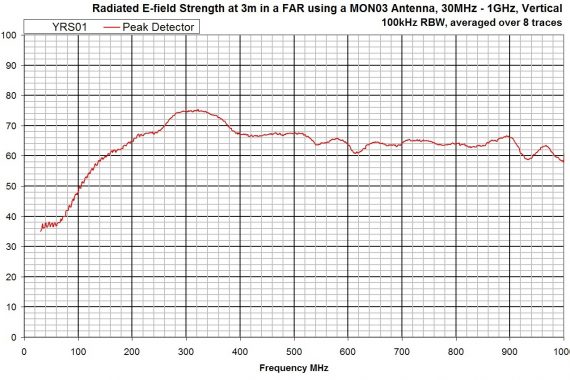

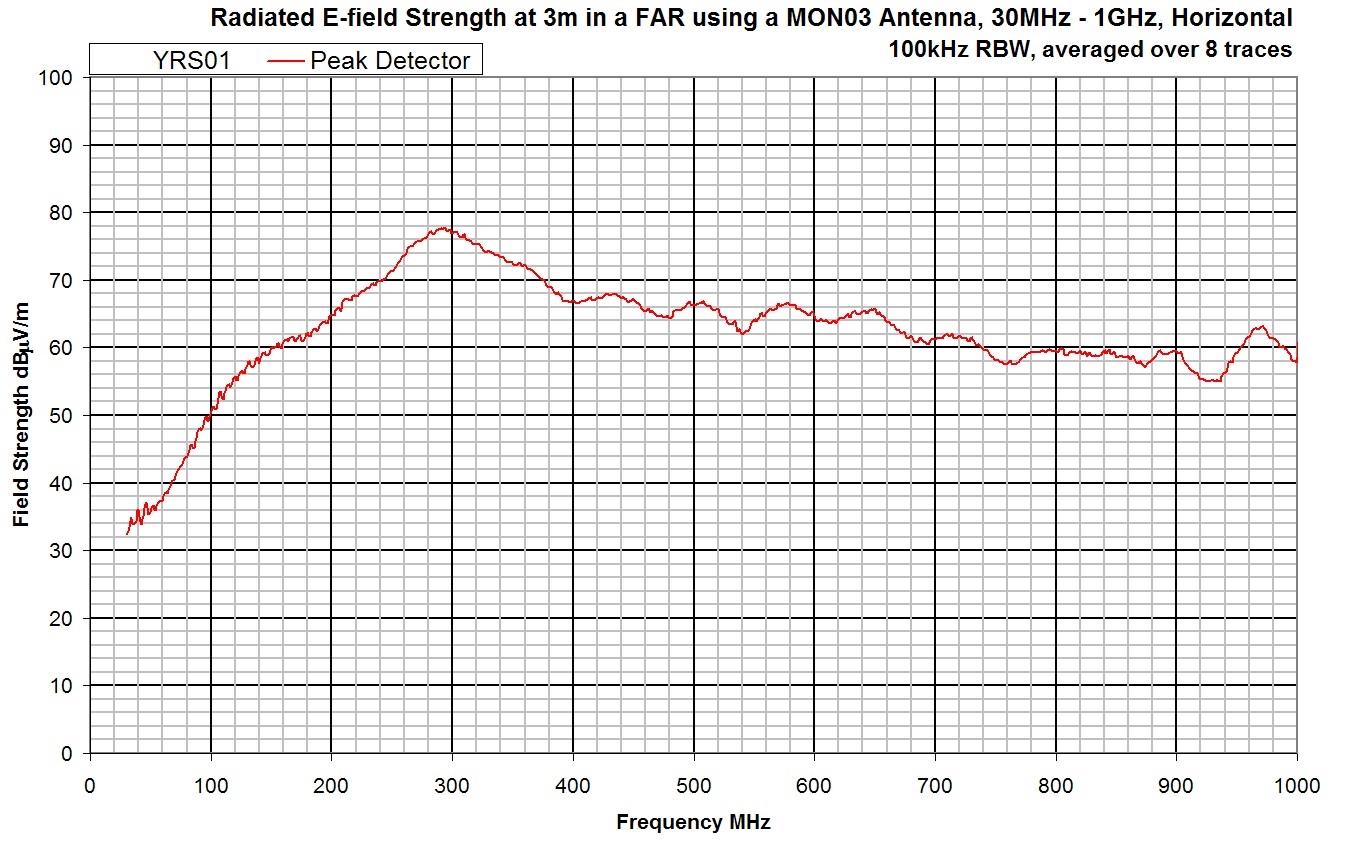

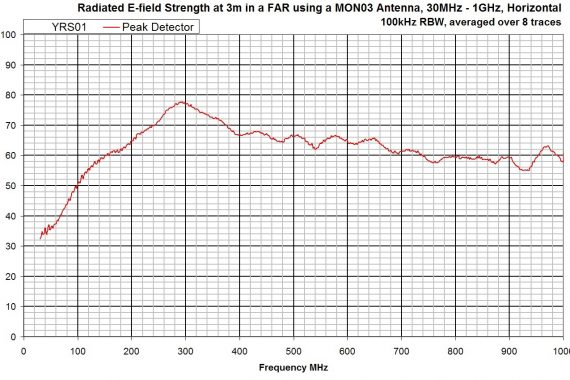

• 30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas

Temperature  stability

• <+/-1 dB 9 kHz to 1 GHz, at an ambient temperature of 15 ºC to 30 ºC
• <+/-2.5 dB 9 kHz to 1 GHz, at an ambient temperature of 5 ºC to 40 ºC

Time Stability

• <1 dB (typical over a 12 month period)

Operating time

• 7.5 hours (typical with fully charged batttery pack)

Comb Mode

Frequency Range

• 5 kHz to 1 GHz direct connection into 50 Ω system

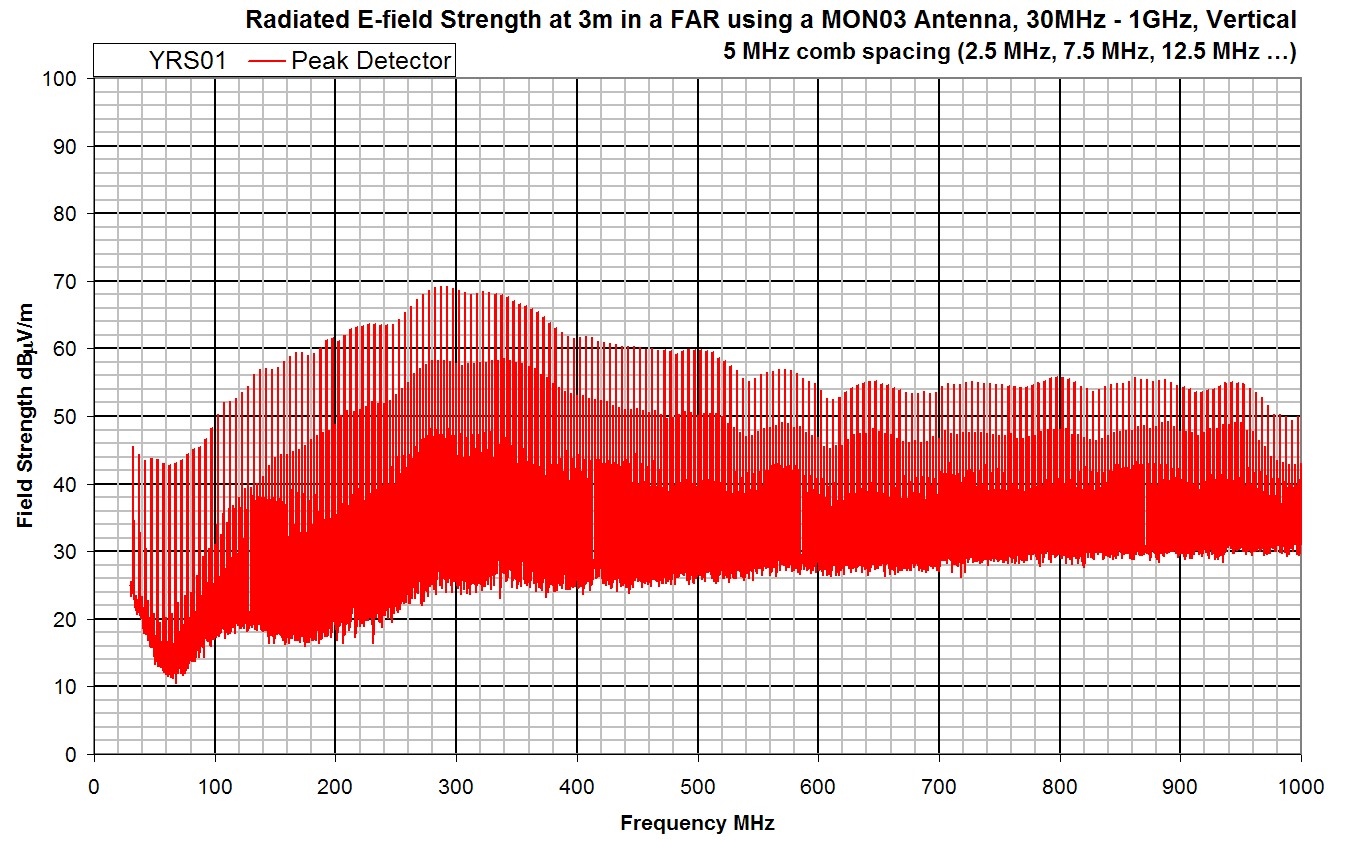

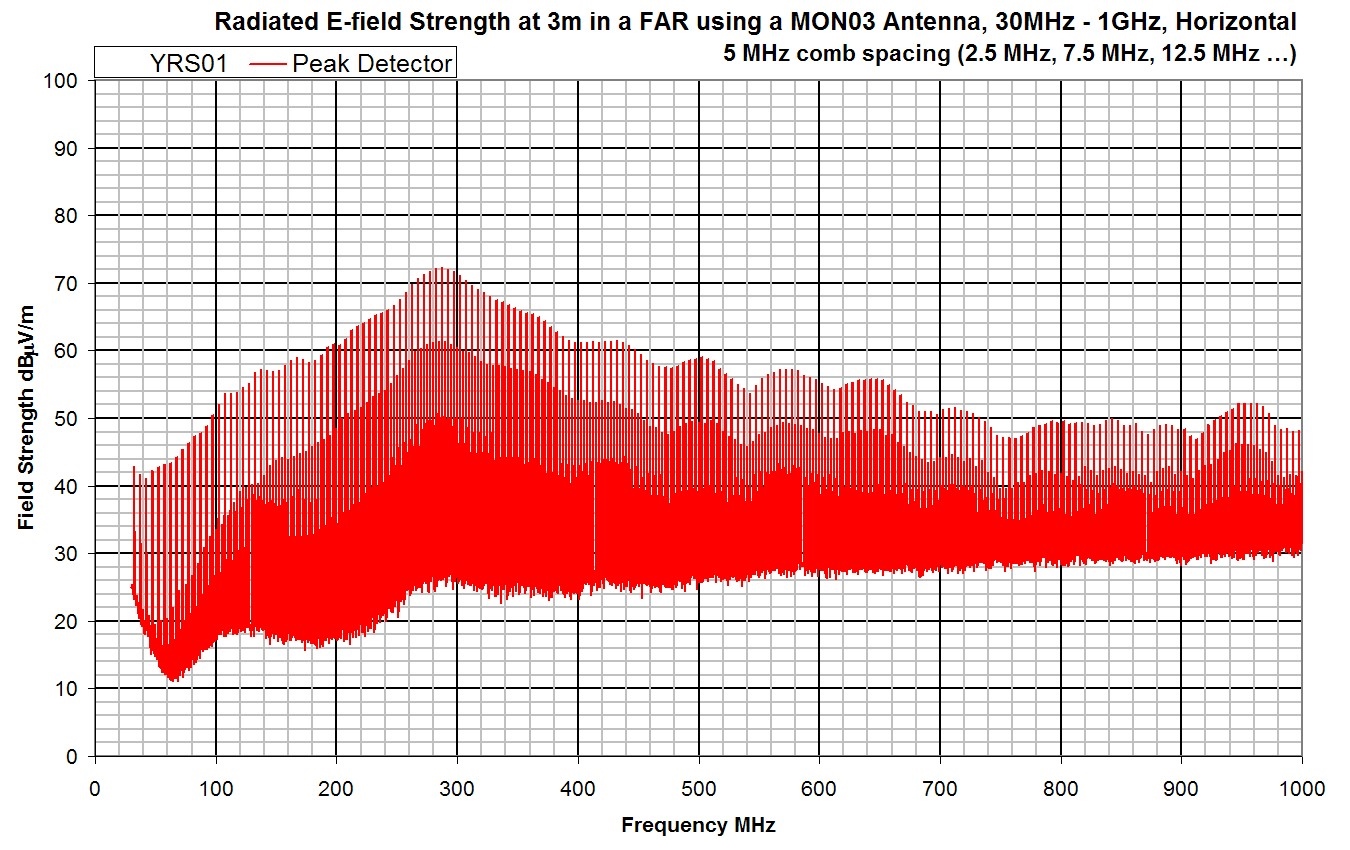

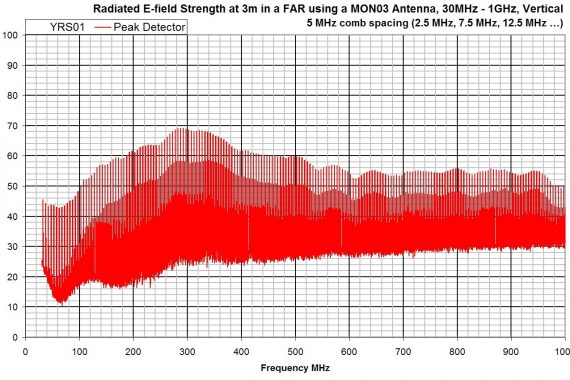

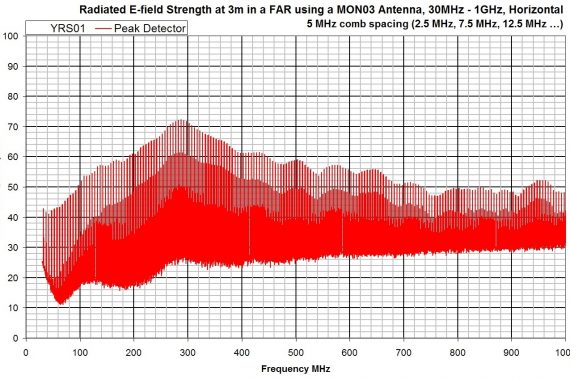

• 30 MHz to 1 GHz radiated using TLM02 and MON03 monopole antennas

Comb Signal Step size, Selectable between:

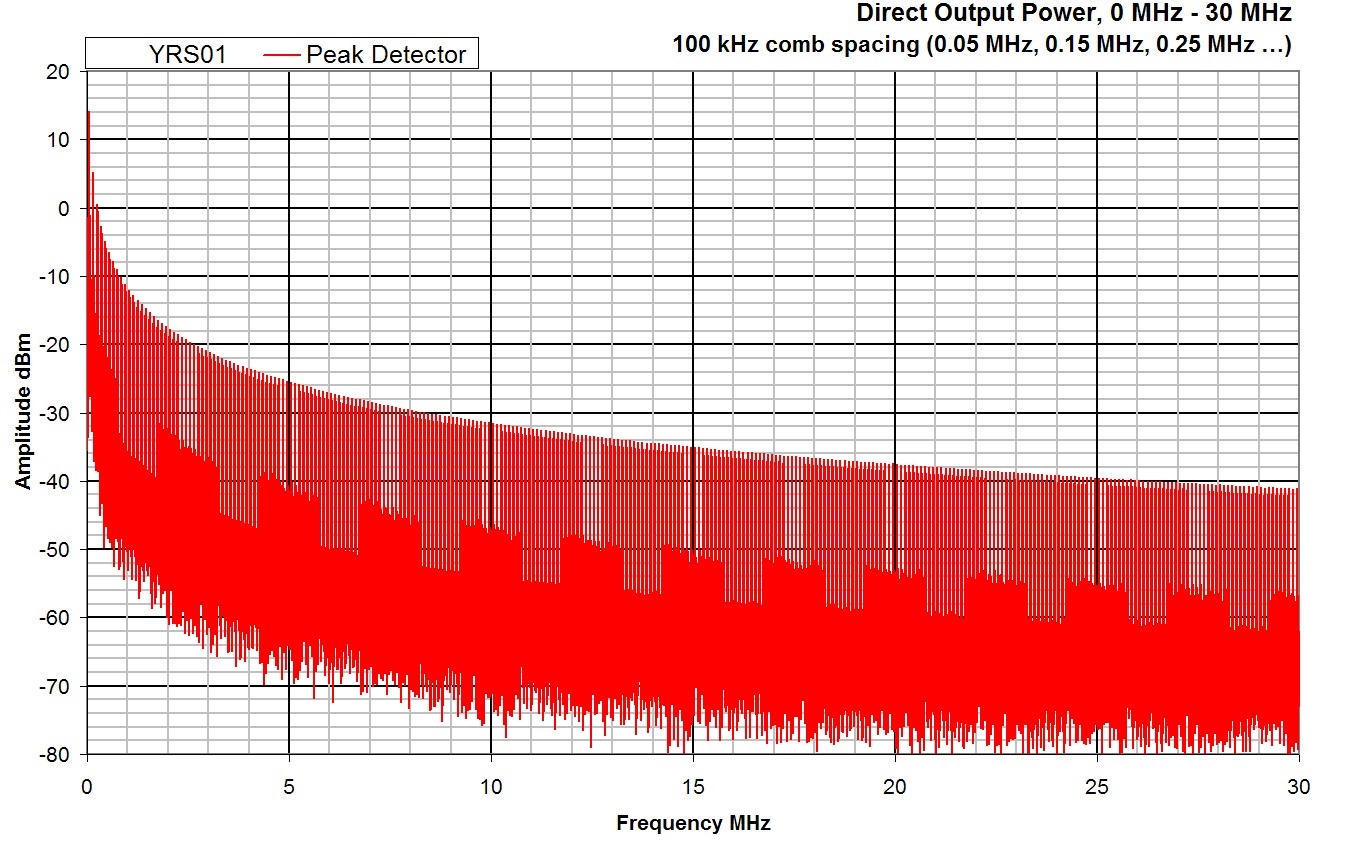

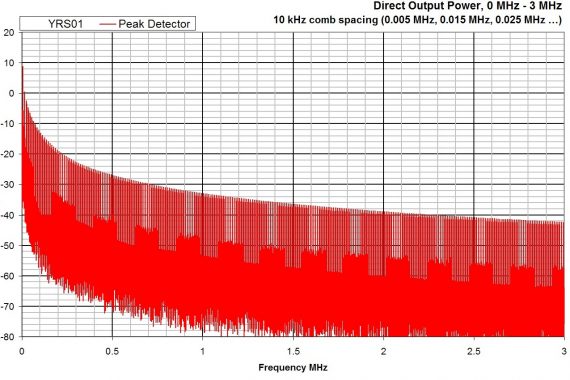

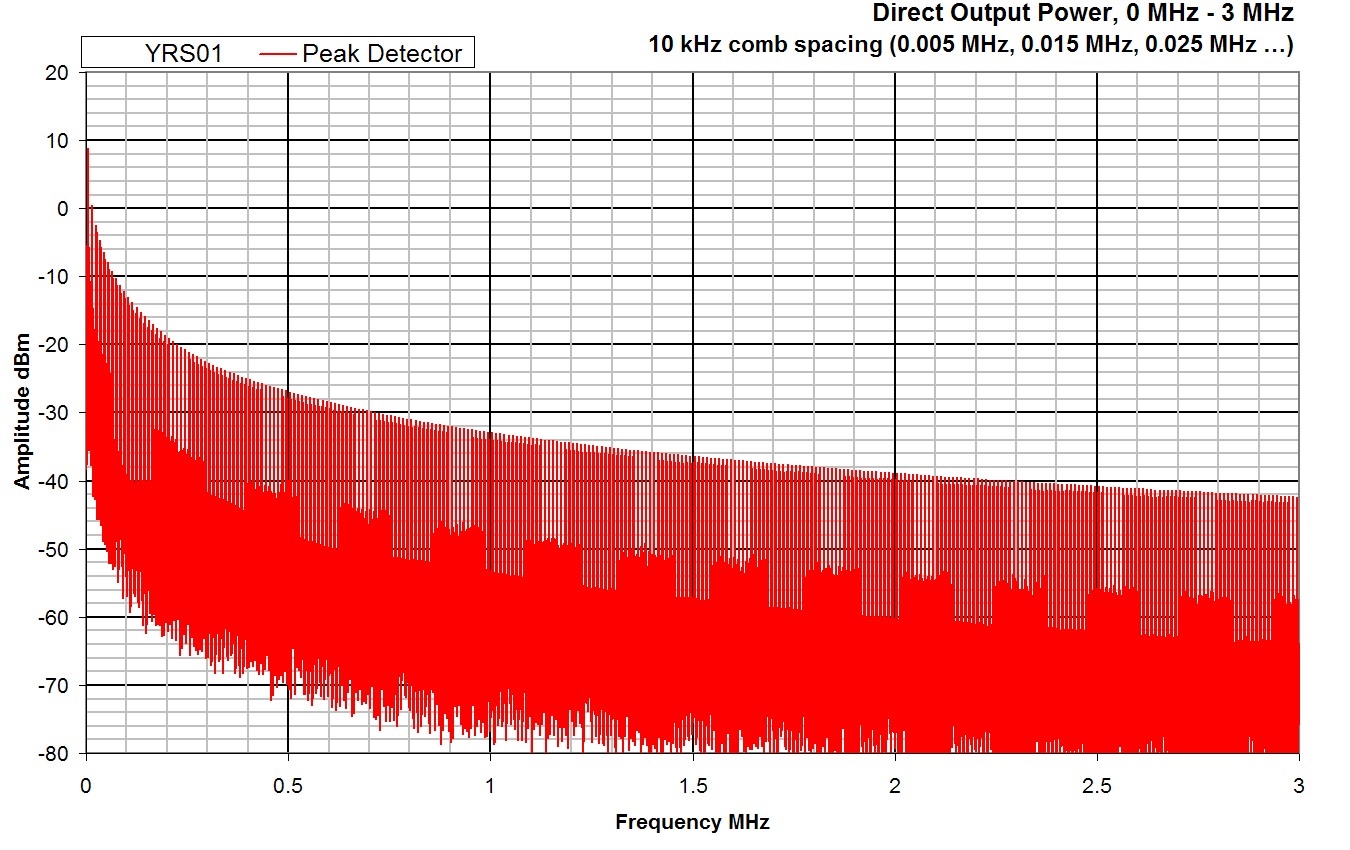

• 10 kHz  (5 kHz, 15 kHz, 25 kHz to 3.005 MHz min.)

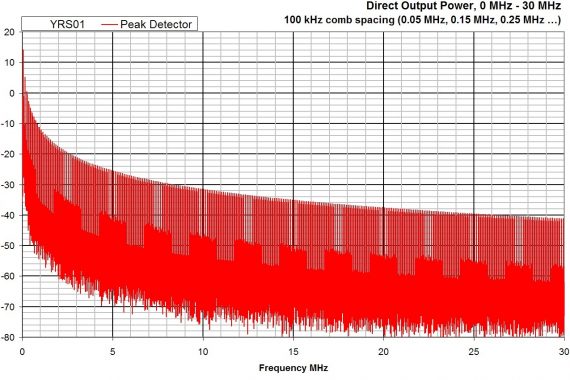

• 100 kHz  (50 kHz, 150 kHz, 250 kHz to 30.05 MHz min.)

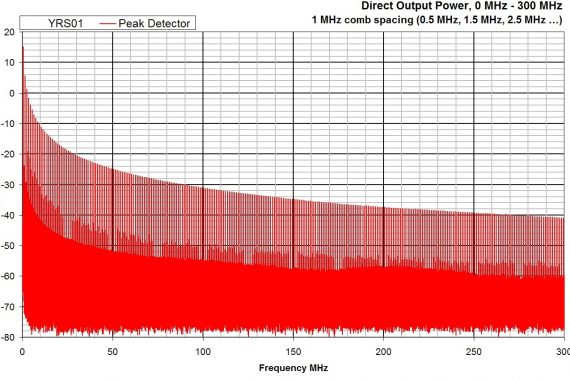

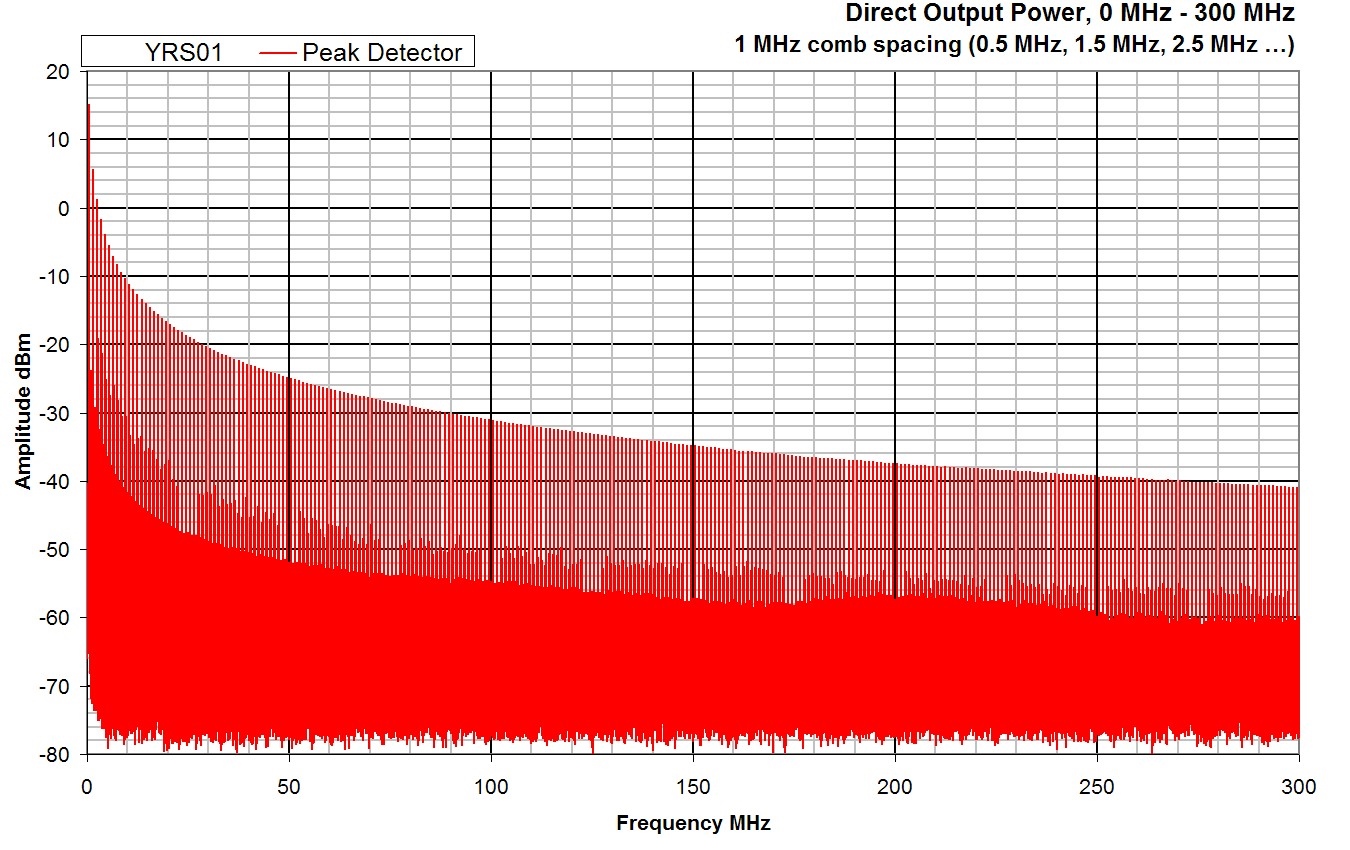

• 1 MHz  (0.5 MHz, 1.5 MHz, 2.5 MHz to 300.5 MHz min.)

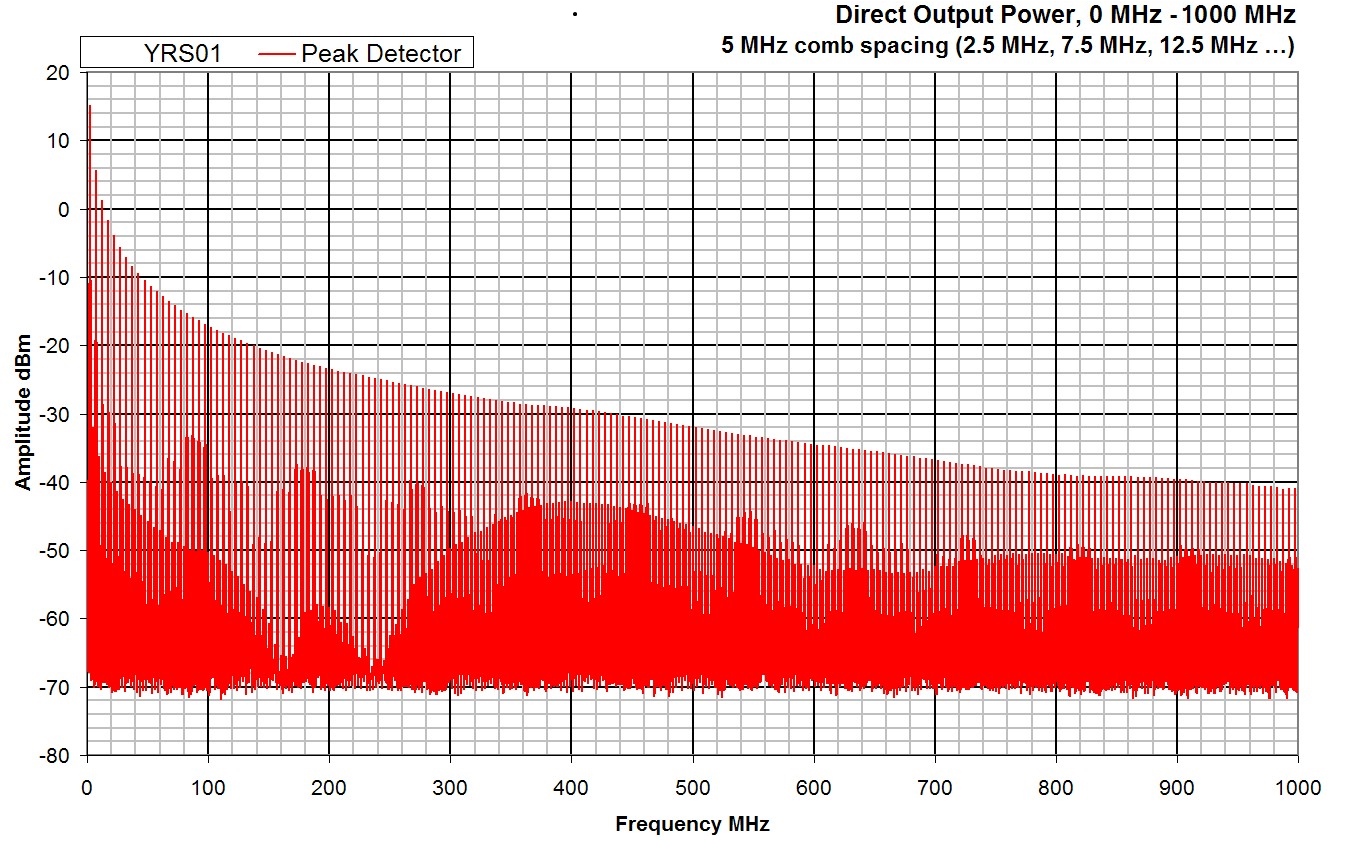

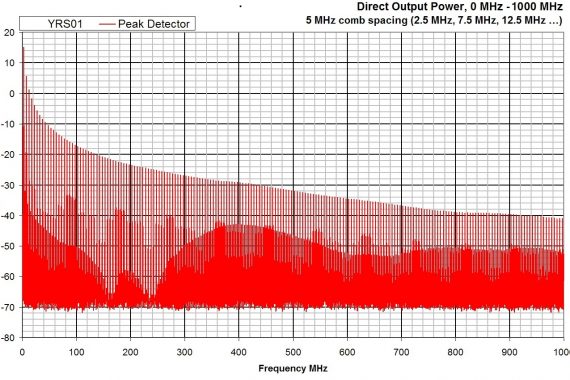

• 5 MHz  (2.5 MHz, 7.5 MHz, 12.5 MHz to 1.0025 GHz min.)

Temperature stability

Amplitude

•  <+/-0.5 dB 5 kHz to 1 GHz, at an ambient temperature of 15 °C to 30 °C
•  <+/-1 dB 5 kHz to 1 GHz, at an ambient temperature of 5 °C to 40 °C

Frequency

• <+/- 0.5 ppm, at an ambient temperature of 5 °C to 40 °C

Time stability

• <1 dB (typical over 12 month period)
• <+/-1 ppm (typical over a 12 month period)

Operating Time

• 8.5 hours (typical with fully charged battery pack)

Other

Output connector

• 50 Ω N-type socket

Dimensions

• 76 mm diameter x 35 mm (56 mm including connector), without battery pack
• 76 mm diameter x 81 mm (102 mm including connector), with battery pack

Weight

• 0.6 kg (including battery)

Power Supply

• 5 V 2 AHr battery pack (order code BP01)
• External input 5.00 V ± 0.25 V, 300 mA (mini-USB type B connector)

Indicators

• Active
• Low battery

Controls

• Rotary switch for mode selection

Standard Order Kits

YRS01KIT01 – Standard YRS01 reference source kit with antenna

Parts included

• YRS01 reference source
• BP01 – rechargeable battery pack
• MON03 –  200 MHz to 1 GHz (optimum) 270 mm long monopole antenna

YRS01KIT02 – Enhanced YRS01 reference source kit with multiple antennas and  LISN adapter

Parts included

• YRS01 reference source
• BP01 – rechargeable battery pack
• TLM02 – 30 MHz to 300 MHz (optimum) 270 mm long top-loaded monopole antenna
• MON03 – 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna
• LSA03 – LISN adapter with IEC 320 style connector

All kits supplied with

• Hard case
• BCH04 universal input battery charger
• CAL16 – 9 kHz to 1 GHz output, power measurement using spectrum analyser
• Manual

Accessorises

MON02 – Telescopic rod antenna

MON03 – 200 MHz to 1 GHz (optimum) 270 mm monopole antenna

TLM01 – 200 MHz to 1 GHz (optimum) 100 mm top-loaded monopole antenna

TLM02 – 30 MHz to 300 MHz (optimum) 270 mm top-loaded monopole antenna

LSA03 – LISN adapter with IEC 320 style connector

NIA01 – ISN adapter with RJ11/RJ14/RJ25/RJ45 style connection

Note: The YRS01 can be supplied as an accessory with the CGE01, CGE02 and CGE03 kits. Details of kit options can be obtained on request from Eurofins York and authorised distributors.

CAL16 Conducted output power

• 9 kHz to 1 GHz, measured using a spectrum analyser. All modes
