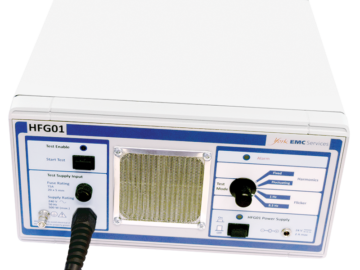

Harmonic and Flicker Generator 01
The Harmonics & Flicker Generator (HFG01) hasÃÂ been designed for the purpose of verifying harmonicÃÂ and flicker test equipment.
The HFG01 provides an easy andÃÂ reliable way to externally check the performance ofÃÂ the measurement system to the IEC/EN 61000-3-2ÃÂ harmonics and IEC/EN 61000-3-3 flicker standards;ÃÂ particularly important as these tests rely on softwareÃÂ control and calculation, and for which there is noÃÂ intuitive sense of the response.
The HFG01 provides a series of harmonic and flickerÃÂ disturbances of a nominal but stable level. This allows theÃÂ user to periodically verify their test equipment, helpingÃÂ maintain compliance with standards and laboratory qualityÃÂ procedures. Alternatively, due to its stability, it may be usedÃÂ as a transfer standard from a known, calibrated test system.
The HFG01 is a standalone device and requires no additionalÃÂ equipment. It connects directly to the test equipment andÃÂ simulates the equipment under test (EUT), generating known,ÃÂ repeatable levels of harmonic and flicker disturbance.
Key Features
- Stable load simulation
- Injects harmonics to IEC/EN 61000-3-2 and Flicker to IEC/EN 61000-3-3
- Compact and portable
- Independent power supply
Features/Applications
Features
Stable load simulation
- Repeatable measurements for test system verification
Injects harmonics to IEC/EN 61000-3-2 and flicker to IEC / EN 61000-3-3
- Evaluation of test systems specifically to EN standards
Harmonic test modes
- Steady-state harmonic-rich load current, representing a fixed load
- Harmonic-rich load currents fluctuating between two load conditions
Flicker test modes
- Fixed level of mains disturbance at 1 Hz rate
- Fixed level of mains disturbance at 8.33 Hz rate
Compact and portable
- Comparisons between sites and environments
Independent power supply
- Separate power supply to the HFG01, to avoid contamination of results
Applications
- Harmonics and flicker measurement systems validation and verification
- Reference source for
- Daily pre-test verification checks if required by the accreditation authorities
- Long-term performance monitoring
- Comparison of different harmonics and flicker measurement systems
Specifications
Test supply connector
- 1.3 m captive lead with CEE 7/7 mains plug for connection to test equipment
Dimensions
- 330 mm × 320 mm × 170 mm
Weight
- 6.5 kg
Power Supply
- External power supply, 24 Vdc, 1A maximum
Indicators
- Thermal shutdown
Harmonic current
- Up to 40th harmonic: 50 Hz to 2 kHz
Flicker disturbance
- 1 Hz and 8.33 Hz
Kits
Standard Order Kits
HFG01KIT01 – Standard HFG01 harmonics and flicker generator kit
Parts included
- HFG01 harmonic and flicker generator
- CAL12 – measurement of harmonics and flicker generated, all modes
- External power supply
- User Manual
Manufacturer's Calibrations
CAL12 – Measurement of harmonic and flicker disturbance generated
- Harmonics
- Measurement of load current made according to IEC / EN 61000-3-2 in Steady State and Fluctuating Harmonics modes. Fundamental (50 Hz) to 40th harmonic.
- Flicker
- Measurement of short term flicker (Pst) made according to IEC / EN 61000-3-3 with disturbance at 1 Hz and 8.33 Hz rates

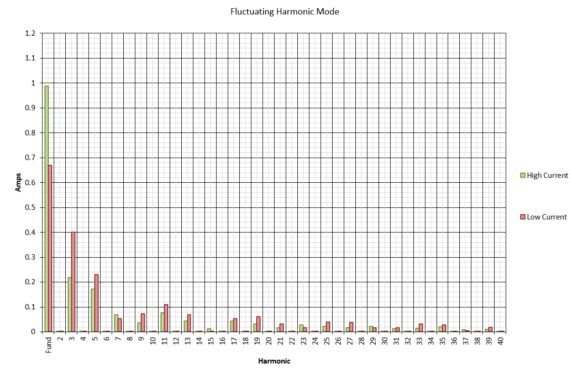

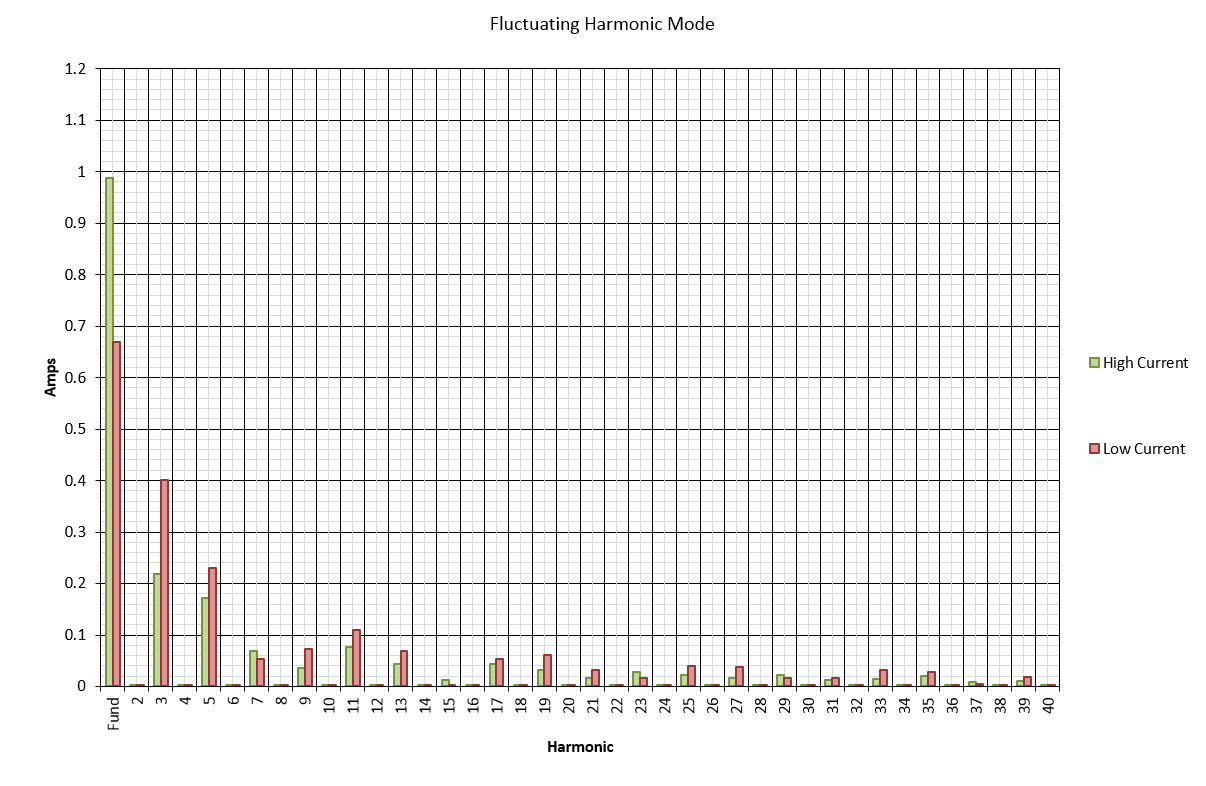

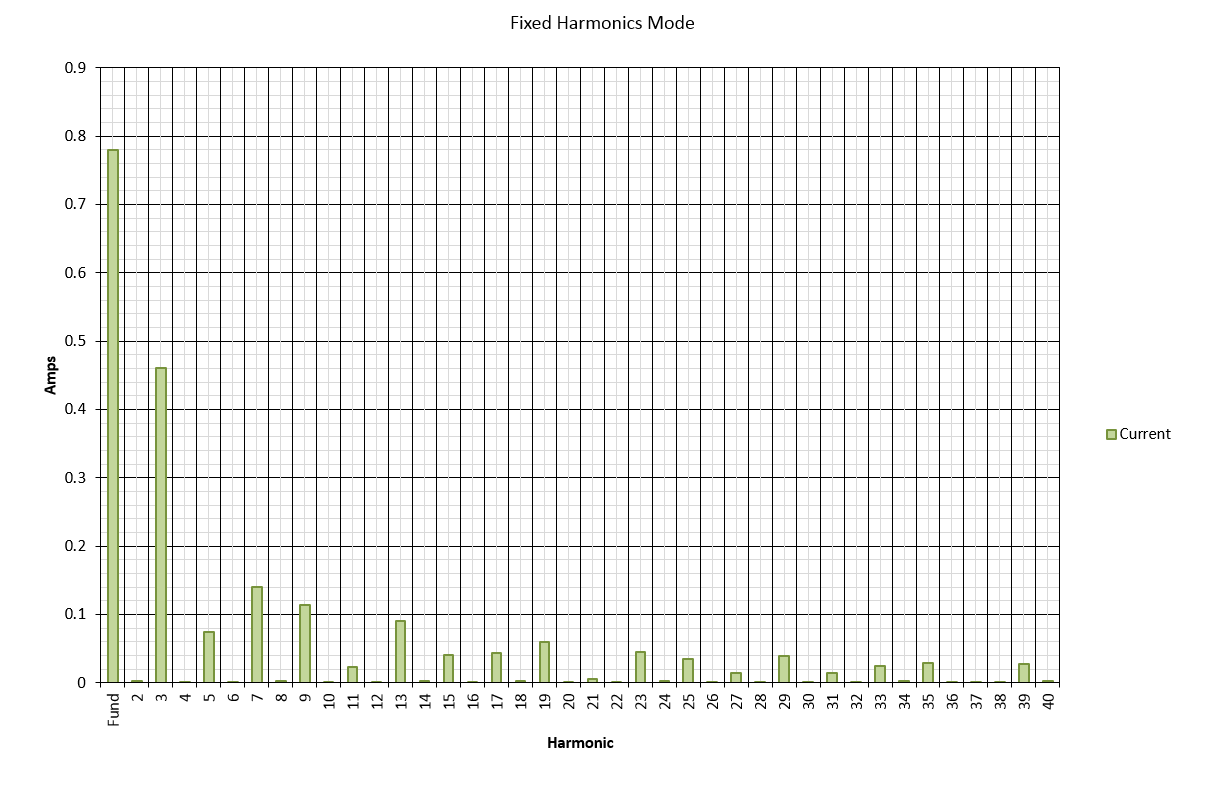

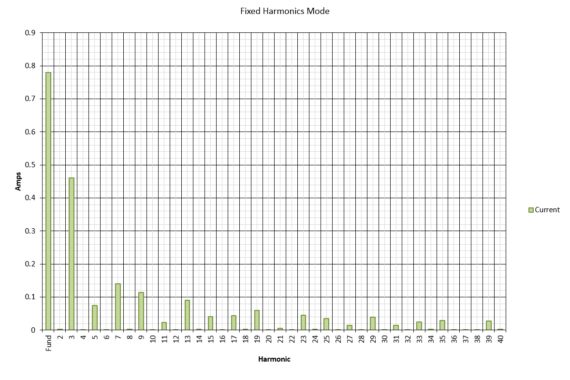

Typical Output Measurement Graphs
